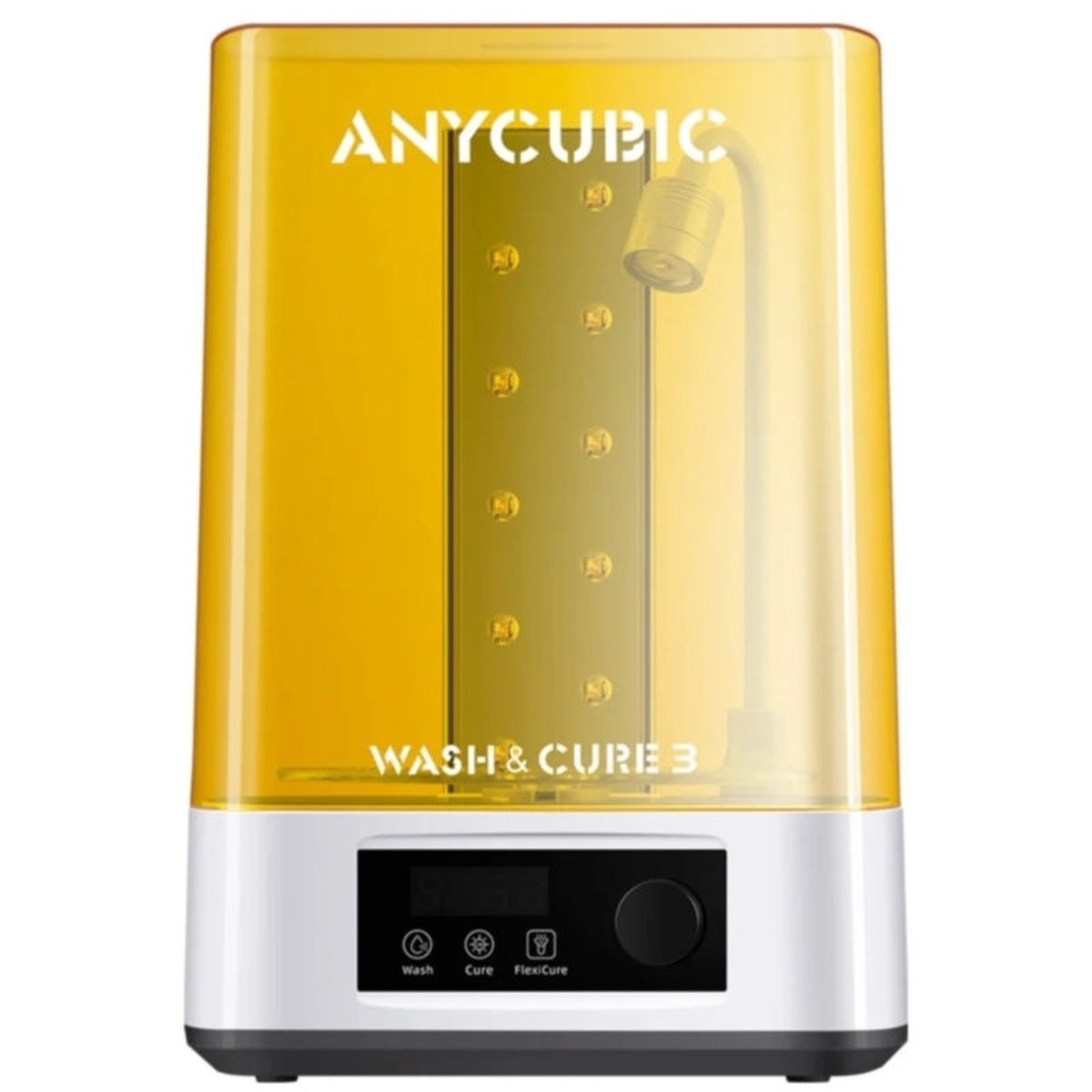

Anycubic Wash & Cure 3 | ANY028.

The Anycubic Wash & Cure 3 represents the next evolution of resin post-processing equipment, offering a larger cleaning volume and enhanced light curing capability. Built for convenience and precision, it simplifies the entire resin 3D printing workflow by combining washing and curing in one compact device.

The gooseneck UV light ensures even exposure across complex geometries, effectively curing intricate details such as the top of models or the hems of garments. Additionally, its dual-layer cleaning basket improves efficiency by allowing simultaneous cleaning of multiple models or platforms while minimising IPA consumption.

With a redesigned LED array, this model provides 20% better light uniformity compared to its predecessor, ensuring thorough curing for every print. Simple operation is achieved through a screen and rotary control knob, offering time settings between 130 minutes for optimal flexibility.

Features & Benefits:

• Upgraded Capacity: Expanded 4-litre inner bucket accommodates larger prints and more models per cleaning session.
• Uniform Curing: Enhanced light bead arrangement and lens light source deliver 20% better curing consistency across the entire model.
• Gooseneck Light Design: Localised light strength increases energy by 30,000 W/cm within a 13 cm range, improving curing precision on detailed areas.
• Dual-Layer Design: Two-tier PP cleaning basket enables efficient IPA usage and allows simultaneous cleaning with adjustable heights (100 mm / 165 mm).
• Simple Operation: One-click mode switching between washing and curing, with adjustable timing from 1 to 30 minutes using the rotary knob.
• Compact & Lightweight: Weighs only 2.7 kg, ideal for desktop resin printer setups.

Specifications:

Code: ANY028
Machine Properties: Wash and Cure
Control Method: Screen with Control Knob
Rated Power: 36W
Input Voltage: AC110220V, 50/60Hz
UV Lights Wavelength: 405nm
Time Selection Range: 130 minutes
Maximum Cleaning Volume: 165mm (L) 100mm (W) 180mm (H)
Cleaning Basket Capacity: 3L
Maximum Curing Volume: 3.18L
Curing Area: 160mm (D) 180mm (H)
Cleaning Method: Alcohol Soaking
UV Light Configuration: 10 405nm LEDs + Gooseneck Light
Machine Dimensions: 216mm (L) 217mm (W) 310mm (H)
Package Dimensions: 420mm (L) 290mm (W) 290mm (H)
Machine Weight: 2.7kg
Package Weight: 3.6kg
Core Functions: Cleaning & Post-Curing for Resin 3D Prints

Scope of Delivery:

• 1 Anycubic Wash & Cure 3 Unit
• 1 Washing Bucket
• 1 Washing Basket
• 1 Hex Key Set
• 1 Rack Bar
• 1 Gooseneck Light
• 1 Power Adapter
• 1 Instruction Manual
• 1 Curing Table

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
