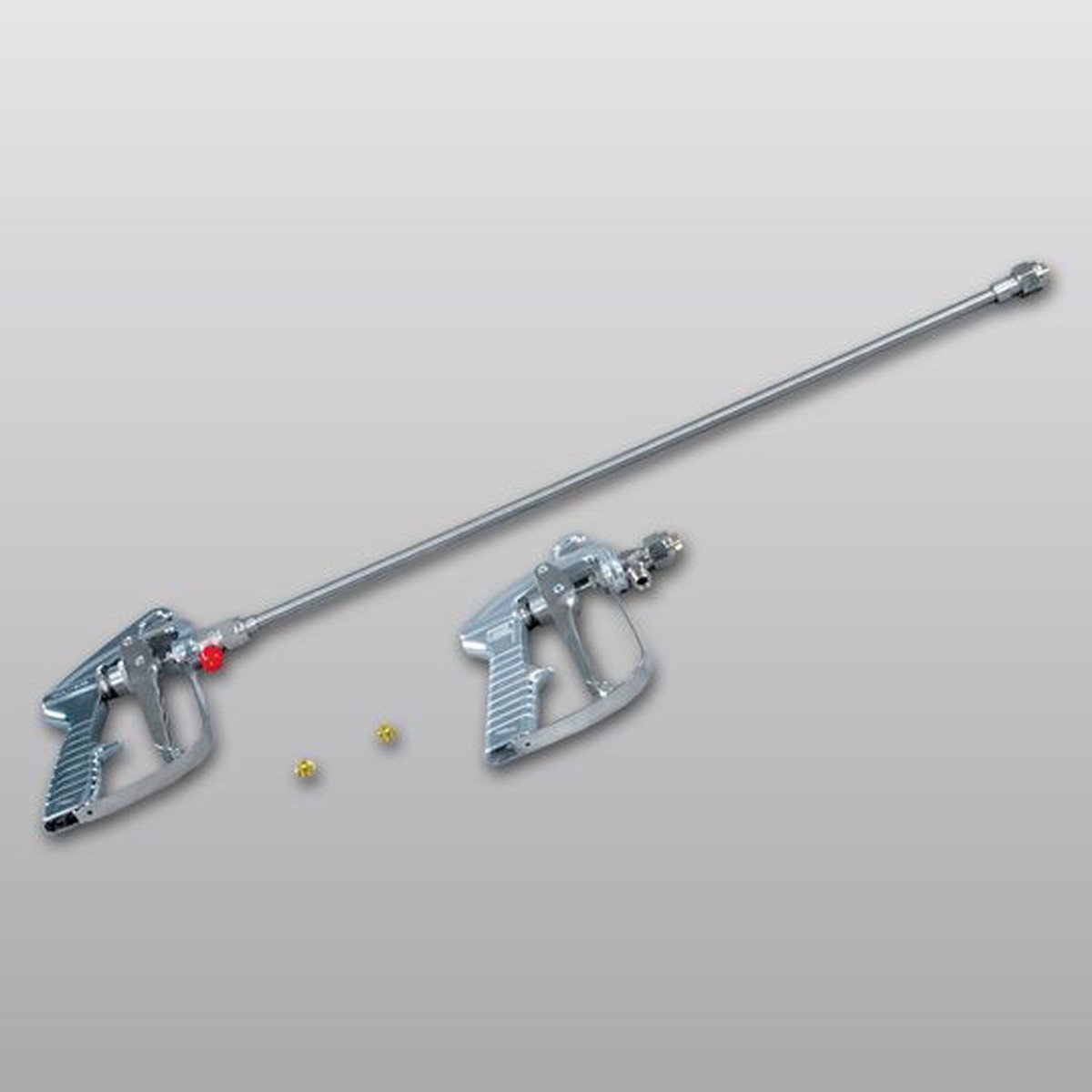

Carlisle SynTec CAV-GRIP Adjustable Spray Gun for Aerosol Adhesive and Primer

This is the Carlisle SynTec CAV-GRIP Adjustable Spray Gun, sold as a single piece for dispensing CAV-GRIP III aerosol contact adhesive and primer from spray cylinders. It connects to the spray hose and cylinder for quick, even coverage with minimal clean-up. Hoses and cylinders are sold separately.

Key Features:

• Adjustable spray: Adjustable spray gun designed for field application of CAV-GRIP III adhesive/primer.
• Quick application: Supports the self-contained CAV-GRIP spray system for quick, even coverage.
• Easy cleanup: CAV-GRIP III system requires minimal clean-up or maintenance.
• Field of roof use: Intended for field-of-roof applications; a standard spray gun is available for wall applications.
• Lightweight tool: Weighs approximately 2 lb.

Specifications Table:

Fit and Compatibility:

For use with Carlisle SynTec CAV-GRIP III adhesive/primer cylinders and the CAV-GRIP spray system, including 5 ft and 10 ft wide spray carts per the manufacturer’s data. Hoses and cylinders are sold separately.

Frequently Asked Questions (FAQ):

Q: What is included?
A: One adjustable CAV-GRIP spray gun; hose and adhesive cylinders are sold separately.

Q: What does it dispense?
A: It is used with Carlisle’s CAV-GRIP III aerosol contact adhesive and primer for TPO and EPDM applications.

Q: How do I connect it?
A: Connect the spray gun to the hose and the hose to the cylinder, lubricating fittings with lithium grease or petroleum jelly and avoiding cross-threading.

Q: Is there a wall-application gun?
A: Per the manufacturer, a standard spray gun is available for wall applications, while this adjustable gun suits field-of-roof work.

Q: How much does it weigh?
A: The item weight is listed at 2 lb.

Expert Verdict Reviewed by the SuperArbor Pro Desk

Keep cylinders warm (propellant above 70F) so the gun sprays rather than spits, and depressurize the hose when changing cylinders. Keep the tip about 12 in. from the surface and perpendicular to avoid heavy buildup that can trap solvent and blister. Pair this gun with the CAV-GRIP hose and cylinders for a complete self-contained spray setup. Match membrane flashing-off time to touch before mating the sheet.

Depressurize the hose before disconnecting fittings, and follow the CAV-GRIP III safety data sheet for solvent vapor and flammability precautions.

Add the Carlisle SynTec CAV-GRIP Adjustable Spray Gun to complete your CAV-GRIP spray system.
