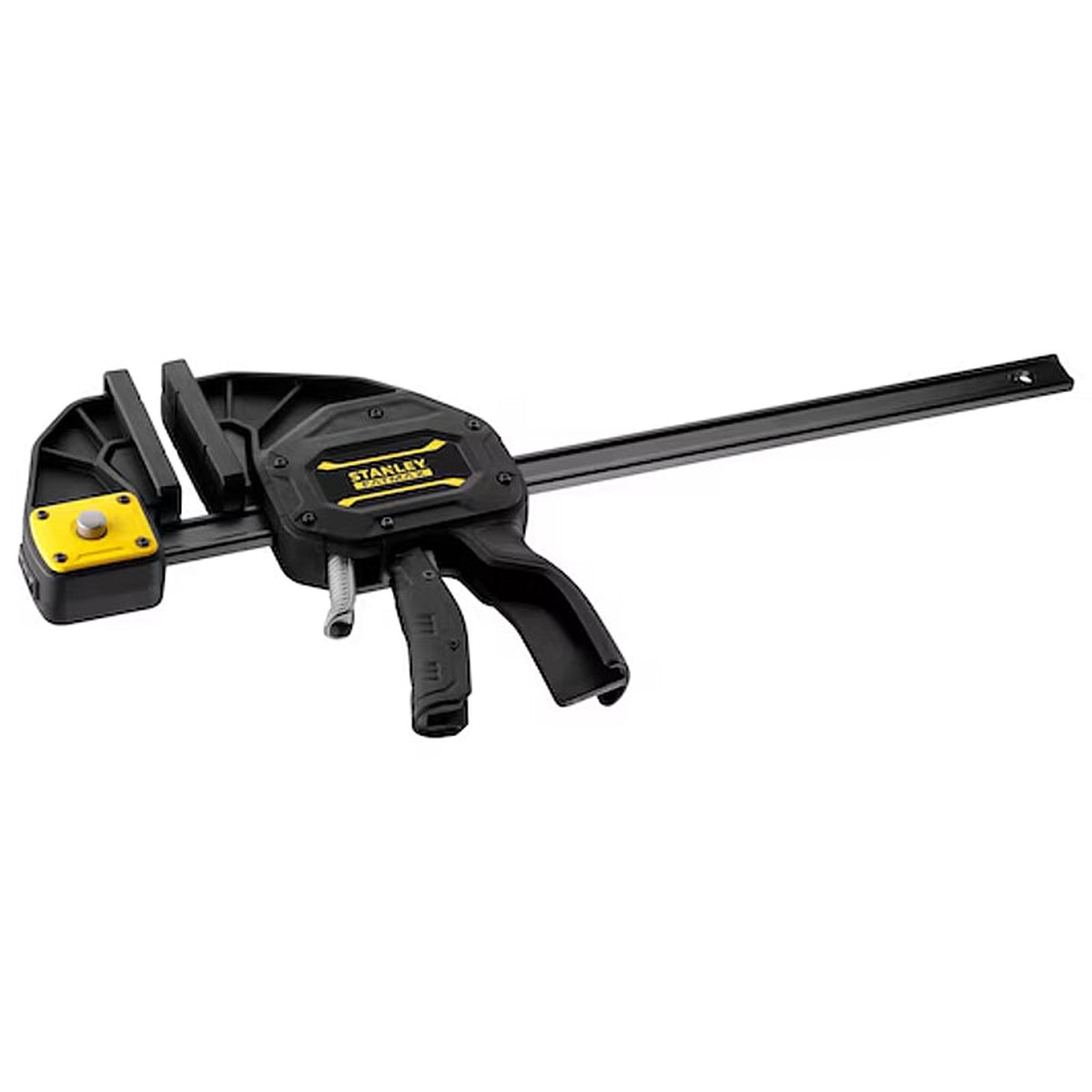

Stanley FATMAX XL Trigger Clamp 450mm | FMHT0-83213.

The Stanley FATMAX XL Trigger Clamp 450mm is engineered for high-strength clamping in professional and industrial environments. Its reinforced glass-fibre nylon body significantly reduces distortion, thereby improving long-term stability during heavy-duty tasks. Additionally, the cold-rolled steel I-Beam backbone enhances strength and durability, ensuring consistent performance over time.

The clamp offers a maximum clamping force of 317kg, while the sustained clamping force of 270kg ensures reliable pressure during extended use. Furthermore, the removable soft jaw pads protect work surfaces from marking, making the clamp suitable for woodworking, fabrication, and general assembly tasks.

The reversible jaw design enables quick conversion from clamping to spreading with a simple tool-free push-button release, adding versatility to a wide range of applications. The die-cast ergonomic release trigger also improves comfort and control, especially during repetitive tasks.

Features & Benefits:

• Reinforced Nylon Body: Engineered glass-fibre construction minimises distortion and ensures long-term durability.
• High Clamping Strength: Provides a maximum force of 317kg and a sustained force of 270kg for demanding applications.
• Durable Steel I-Beam Backbone: Cold-rolled steel delivers excellent rigidity and strength.
• Tool-Free Reversible Jaw: Quick push-button release converts clamp to a spreader instantly.
• Non-Marking Soft Pads: Removable jaw pads protect surfaces from damage.
• Ergonomic Release Trigger: Die-cast design allows smooth and controlled operation.
• Industrial Rating: Suitable for professional use in demanding environments.

Specifications:

Rating: Industrial
Total Length: 710mm
Clamping Capacity: 450mm
Spreading Capacity: 220mm 690mm
Throat Depth: 90mm
Sustained Clamping Force: 270kg
Maximum Clamping Force: 317kg
Body Material: Reinforced glass-fibre nylon
Backbone Material: Cold-rolled steel I-Beam

Scope of Delivery:

• 1 x Stanley FATMAX XL Trigger Clamp 450mm | FMHT0-83213

Please Note: Kindly be aware that the images serve solely for illustrative purposes; the items included in the delivery are specified in the product content/description or as indicated by the product title.
